Short-range wireless devices (SRDs) refer to wireless transceivers that enable one-way or two-way communication without causing interference with other wireless systems. These devices are widely deployed across various industries and offer a broad range of services. Common applications include home automation, remote controls, wireless sensors, alarm systems, automotive functions like keyless entry and remote start, as well as voice and video transmission. When designing such systems, engineers must carefully choose the operating frequency, as most SRDs are restricted to unlicensed bands under specific regulatory conditions. Table 1 outlines the available frequency bands for short-range wireless devices globally.
For global systems, the 2.4 GHz band is often the go-to choice due to its wide availability and support for multiple standards like Bluetooth, Wi-Fi, and ZigBee. In some cases, the 5.8 GHz band is also used, particularly in certain Wi-Fi configurations and wireless phone applications. However, for systems requiring longer range and lower power consumption, frequencies below 1 GHz are gaining popularity. These bands typically experience fewer coexistence issues and allow for more efficient power usage, which is crucial for battery-powered devices.
While 2.4 GHz and 5.8 GHz bands are commonly used, they can become congested in high-density environments. This makes lower frequency bands more attractive for applications where signal stability and energy efficiency are priorities. Additionally, these bands provide better penetration through obstacles, making them ideal for indoor and outdoor deployments.

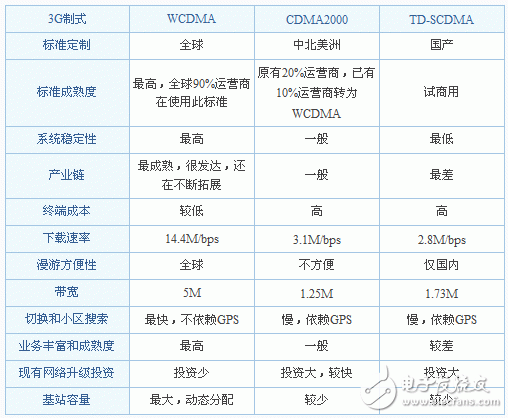

WCDMA, or Wideband Code Division Multiple Access, is a third-generation (3G) mobile communication technology that builds upon the GSM core network and uses UTRAN (UMTS Terrestrial Radio Access Network) as the wireless interface. It evolved from CDMA and is considered an extension of IMT-2000, offering higher data rates and mobility than previous generations. WCDMA uses direct sequence spread spectrum (DS-CDMA) and frequency division duplexing (FDD), with a chip rate of 3.84 Mbps. It supports voice, image, data, and video communication at speeds up to 2 Mbps in local areas and 384 Kbps in broadband networks. The signal is first digitized and then spread across a wide frequency band to reduce interference. Compared to narrowband CDMA, which uses a 200 kHz carrier, WCDMA uses a 5 MHz carrier. China Unicom holds licenses for this standard.
CDMA2000 is another 3G standard, developed by Qualcomm and later adopted by companies like Motorola, Lucent, and Samsung. It comes in two main versions: CDMA2000 1x EV-DO, which is optimized for data-only transmission, and CDMA2000 1x EV-DV, which integrates both voice and data over the same channel. This standard is based on the earlier CDMA One technology and allows for a smooth upgrade path to 3G with minimal infrastructure changes. It is known for its scalability and cost-effectiveness in deployment.
TD-SCDMA, or Time Division-Synchronous Code Division Multiple Access, is the third major 3G standard approved by the ITU. Developed primarily in China, it stands out for its use of smart antenna technology, synchronous CDMA, and software-defined radio (SDR). Unlike other 3G technologies, TD-SCDMA uses time division duplexing (TDD), which ensures similar uplink and downlink channel characteristics. This helps reduce user interference and improve spectral efficiency. Its flexible time slot allocation makes it especially suitable for Internet-based services with more downlink traffic. However, the dynamic nature of uplink-downlink switching adds complexity to network planning and optimization.
