Foreword
Aunt Zhang had been for a long time and had only been watching silently. She watched people write things, share ideas, and pay attention to Zhang Aunt’s various kinds of preferential information, and then silently picking up her hands. Recently, I would like to write something original to brush my presence. It's been exactly 3 months since I used this mouse. I'll combine it with the actual experience to give you a simple assessment.
Packaging and accessories
The MX780 package uses gray as the main color and the front is the product rendering. The upper left corner of the "RGB" reminds the mouse that it has 16.8 million color effects. Below the package are the relevant selling points of the mouse: 8200 DPI, 8 custom buttons, 3 custom RBG lighting areas, and adjustable palm rest. In addition, you can see 130ips and 30G acceleration on the official website without a label.
MX780's packaging uses a more common flip design with blister packaging, open the mouse body and accessories can be seen open. Hands-on fits are available across the package, and you can experience the feel of the mouse.
MX780 family portrait, in addition to the mouse body package, there is a manual, a warranty card, two interchangeable side skirts, two 4.5g weights, and a small tool to adjust the height of the palm rest.
The MX780 is a lightly modular design. It is actually a design that can be replaced on the sides and offers two sets of different designs and sizes for replacement. The replacement flank uses two magnets to fix it, and it will not fall off when it is close to the right and left.
The MX780 has two 4.5g counterweights. The counterweight also has a soft rubber case that prevents wear during installation. It can also prevent strange sounds from loosening when installed in a mouse. This counterweight, regardless of weight or size, is the same as the counterweight of Coolguard's Guardian 3. Is it the same OEM that uses the same counterweight? Or is it a designer's job?
The tool for adjusting the palm rest, as far as the manual is concerned, I think no one would have much interest and would not introduce it.
Appearance details

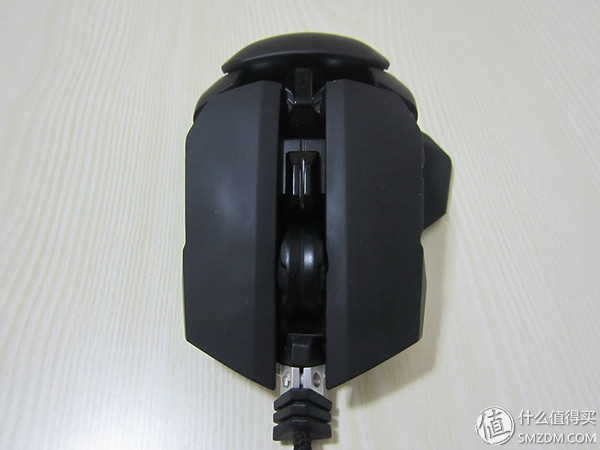

The overall design style of the MX780 is full of technical sense, with removable side wing design and elevating palm rest design, belonging to a light modular design. Where there are many gaps in the mouse, it is better to use heat dissipation for a long time. The measurement size of the mouse is 130mm70mm38mm, and the width is 93mm when the wing is enlarged. The total weight is about 120g (including weight). The overall mouse is black and silver.
Side view in four directions. It can be seen that the MX780 is a symmetrical symmetry rat that can be set to switch between left and right hands in a single drive.
The MX780 adopts a symmetric split button design. The left and right buttons are micro-motions of the Omron 7N (20M), and the hand feel is crisp. The surface is a skin-like material that is comfortable to touch, but it is easier to stick dust and fingerprints. The four small light bars in the middle section and the G.SKILL brand logo on the palm rest are RGB lights that can set the light color and flicker mode by driving. The four small lamps in the silver part support three modes of constant light, respiration and gradual change. The brand logo light supports two modes of constant light and breathing.
The flanks are also made of skin-like material with a special concave pattern to enhance the anti-slip effect.
In addition, the flanks also hide the weight function, one on each side. The left side of the figure below shows the effect of installing the counterweight, and the right side shows the sketch of the counterweight. Because the author's hand strength is small, the weight for me is something that is inconceivable. Even the hidden weights on the tail were also removed. This will be introduced later.
The left and right wing modules of the mouse can be combined into four different forms according to different usage habits. The author personally still likes the initial default form.
There are two side keys on the left and right sides and three RGB lights on the front side of the side keys. In the environment where the mouse has a large area of ​​hollow effect, it is not easy to find the side keys because they do not pay much attention. The benefits of this design, I think it is not easy to touch.
The MX780's roller has a side light transmission design with black rubber on the surface. The middle part of the wheel is easily indented to facilitate finger positioning. The transition is soft when scrolling, but the scroll wheel buttons are stiff and feel not very good. Due to the lack of scale on the surface of the rubber, when the sweat on the hand rolls quickly, it will be easier to slip. In particular, it is necessary to mention that the DPI switch button behind the scroll wheel is relatively easy to use due to its proximity to the scroll wheel. MX780 uses Avago A9800 engine, there are five adjustable DPI, adjustment range is 100-9800, the minimum adjustment unit is 100DPI, can be set through the drive, the default DPI gear is 800/1600/2400/4800/8200DPI . When switching gears, all the lights will be lit according to the order of the gears, which are white, red, green, blue, and yellow.
A large area of ​​the MX780 chassis uses a metal panel of aluminum alloy and a wire drawing process. The optical head is located at the back of the mouse. There are a total of 5 Teflon pads at the bottom, and there is also a foot sticker on the flank with finger rests. In addition, there is a palm rest height adjustment hole at the tail.
You can fine-tune the height of the tail that is suitable for your grip with the gadget in the attachment.
The design of the outlet is somewhat ugly, but the pull resistance is also good.
In terms of wire rods, the MX780 uses a black nylon braided wire with a wire length of approximately 180 cm and a diameter of approximately 3.5 mm. The wire is relatively soft. The USB connector is gold-plated and does not have a shield ring.
Hidden weights
At first I removed all the visible screws, but I still could not open the mouse. After looking at the person's post, the bottom metal panel is peeled off and there will be hidden screw holes. However, if the operation is careless, it will cause the metal panel to be deformed and cannot be restored. I gave up the dismantling. A friend told me that there was a hidden counterweight in the palm rest and I was taken out. Little effort is no way.
drive
Customization is to set key functions. All 8 buttons are programmable, and the scroll wheel slides up and down to set two functions.
Setting is to set mouse performance parameters. Including refresh rate, DPI, double-click speed, Windows pointer speed, scroll wheel speed and silent height, can be set according to the usual usage habits.
Lights are setting lights. Including light mode settings, color settings. “Backlight†is the constant light mode; “effect light†is the breathing mode; “lighting and system synchronization†is to set whether the mouse continues to glow after the computer is turned off, and if it is not checked, it will still glow after being turned off, and Breath or gradient effect.
Macros are divided into "macro" and "text". "Macro" is the function of recording macro keys; "text" is actually the same as "macro" function. Input a text, assign this function of recording to a key, and then click this key to quickly record the recorded text.
Light profile, this interface allows you to set the light effects you want.
System settings menu, can switch language versions, check for newer versions, export configuration files and settings, reset default settings, etc.
light
The MX780 has four lighting areas that can be set, including the Logo at the palmrest, the four LED strips in the middle (which can be adjusted separately), the scroll wheel, and the light strips on both sides (the same color). Each area can be set with a separate color, and the overall brightness can be adjusted. However, to set a breathing light, you need to set the light scheme before use, making the process more complicated. In general, the playability is acceptable, and it takes a while to get started before playing.
Touch experience
MX780 this mouse, the size of the data looked relatively large, but the author's hand grasping 17cm is not too difficult, after adjusting the palm rest, the palm of the hand is held back and become a forced grip feeling. Daily office use, or play League of Legends, and Call of Duty FPS games, performance is quite satisfactory. The 19cm hand of the author's friend needs to slightly increase the height of the palm drag, and there is no obvious discomfort when used.
Summary G.SKILL Ripjaws MX780 supports up to 8200DPI Anwara A9800 laser sensor, light modular design, weight adjustment, on-board memory and other configurations, making it a wider range of adaptability and adaptability. However, the lighting effect setting is slightly complicated, and the insufficiency of the small details needs to be improved. For example, the wheel does not have a scale and slippage occurs, the wheel buttons have a stiff touch, and the DPI button is prone to inadvertent touch. There is also too much mean, no characteristics and pertinence. The author believes that if more specific for a certain type of game, may allow more players in this area to accept it. In general, this MX780 mouse, the author is satisfied with it, at least to meet my daily use needs: normal office daily, occasionally relax to play the next game. Everyone has their own favorite feel and different usage habits, the best for their own. As the title says, I am a person who prefers niche products. I hope everyone will find suitable peripheral products.
