Dalian United Holdings announced that its products are based on Microchip's application solutions for smart homes and peripheral accessories, such as Bluetooth lights, wireless smoke detectors, smart sockets, energy metering, and intelligent routing gateways.
Smart home is the embodiment of IoT under the influence of the Internet. Smart home also connects various smart devices in the home through IoT technology. IoT technology provides various functions and means such as home appliance control, lighting control, telephone remote control, indoor and outdoor remote control, burglar alarm, environmental monitoring, HVAC control, infrared forwarding and programmable timing control; intelligent devices such as audio and video equipment, lighting systems , curtain control, air conditioning control, security systems, digital cinema systems, audio and video servers, video cabinet systems, network appliances, and more.

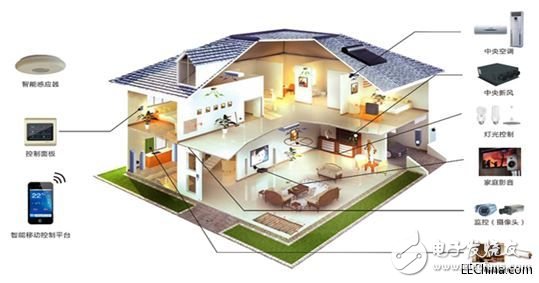

Figure 1 - Schematic diagram of smart home and smart device
As a leader in the industry, Microchip has been developing technologies and products for the IoT IoT, including Bluetooth chips, Wi-Fi modules, MCUs, memory, LDOs, and more. As a distributor of Microchip, Da Lian Da Pin Jia has been committed to the promotion of smart home solutions for a long time, especially the ICs developed by various applications developed by Microchip to build smart home and smart home peripheral accessories.
Figure 2 - Schematic diagram of the application solution of Microchip-based smart home and peripheral accessories launched by Da Lian Da Pin Jia
1. Intelligent routing control unit: Using Microchip's low-pin, low-power, high-performance 8-bit MCU as the master.
2. Bluetooth: Bluetooth dual-mode module supports BT4.0 (BLE) and BT3.0+EDR. There is also a 55nm process, lower power consumption of the BM70 BLE module, and a Bluetooth SOC chip that supports BT4.2 or Mesh in the Bluetooth light.
3. Wi-Fi: The MTK Wi-Fi module with stable transmission data.
4. Smoke detector: The main control adopts RE46C191/RE46C190. The biggest feature of this IC is that it supports 3V power supply, supports CE, integrates DC2DC function internally, and can realize device cascade and status output, and the time period such as inspection can be adjusted.
5. Smart Socket/Power Part: Power monitoring MCP39F511 with calculation and energy accumulation, this IC provides all the usual standard power calculations and some advanced functions, and integrates the input and output of active energy, four-quadrant reactive energy accumulation, Both zero-crossing detection and dedicated PWM outputs are integrated on the chip and measure active, reactive, and apparent power, RMS current and RMS voltage, line frequency, and power factor.
6. Low-Power Static LDO: The MCP1702 has a quiescent current of only 2uA, making it ideal for IoT products and portable devices such as wearables.
Intelligent router for smart home and wireless printing
Figure 3 - Microchip-based intelligent router solution launched by Dalian Dapin
PIC16F1936 performance
• Low power consumption:
• Idle mode:
- 50 nA @ 2.0V, typical
• Working status:
- 11 A @ 32 kHz, 2.0V, typical
- 220 A @ 4 MHz, 2.0V, typical
• Watchdog timer:
- 1 A @ 2.0V, typical
BM77SPP03MC2 performance
• Compatible with BT 3.0/ 4.0+ EDR
• Support for 1.8V RF operation
• RF output Class 2
• I2C for external EEPROM
• 1 LED driver
Figure 4 - Microchip-based intelligent router demo version of the company
Wireless smoke detector for home fire protection and security
Figure 5 - Microchip-based wireless smoke detector solution from Dalian Dapin
RE46C191/RE46C190 performance
• Industry's first support for 3V power
• Integrated smoke detection and boost drive
• With calibration and multiple operating modes
• Low power consumption
Figure 6 - Microchip-based wireless smoke detector development board
Bluetooth lights for IoT, wearable devices, smart hardware, electronic scales, POS machines, etc.
Figure 7 - Microchip-based Bluetooth light solution from Dalian Dapin
IS1870/71SF performance
• Support BT4.2 protocol and compatible with BLE
• Internal integration of 256KB flash
• Support Mesh
• Support for Beaconthing applications
• Support peripherals such as UART, SPI, I2C, PWM.GPIO
Figure 8 - Photo of Microchip-based Bluetooth Smart Smart Dimmers from Da Lian Da Pin Jia
Smart socket for systems such as lighting, heating, electricity meters and AC/DC power supplies
Figure 9 - Microchip-based smart socket solution from Dalian Dapin
MCP39F511 performance
• Dual delta-sigma 16bit ADC
• Internal integrated EEPROM
• Temperature drift of 10 ppm/°C reference voltage with an accuracy of better than 0.1% at a dynamic range of 4000:1
• Provides all common standard power calculations, active energy accumulated input and output, four-quadrant reactive energy accumulation, zero-crossing detection, PWM output
• Supports active power, reactive power and apparent power, RMS current and RMS voltage, line frequency and power factor
Figure 10 - Microchip-based smart socket demo version of the photo
