In the electronics industry, engineers frequently encounter challenges related to impedance matching. But what exactly is impedance matching, and why is it so important? This article will explore these questions in detail.
First, let's understand what impedance is. In electrical terms, impedance refers to the opposition that a circuit presents to the flow of alternating current (AC). It is measured in ohms and is usually represented by the symbol Z. Impedance is a complex quantity expressed as Z = R + j(ωL - 1/(ωC)), where R is resistance, and the imaginary part represents reactance. Reactance can be either capacitive or inductive, depending on whether the component is a capacitor or an inductor.

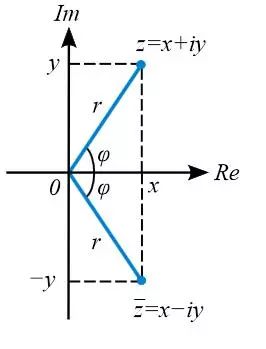

*Figure 1: Complex representation*
Next, why is impedance matching important? Impedance matching involves ensuring a proper match between the signal source, transmission line, and load. The primary purposes of impedance matching are to maximize power transfer and to minimize signal reflection.

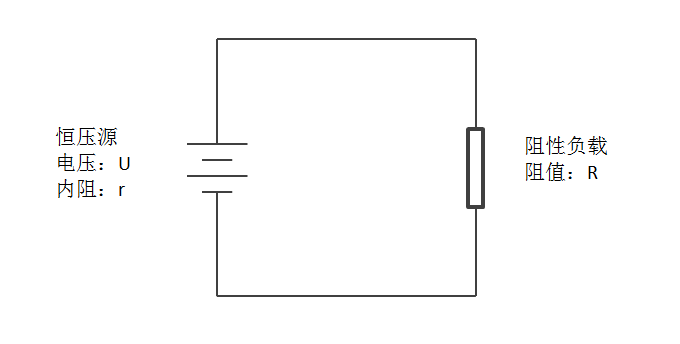

One key benefit of impedance matching is optimizing the power delivered to the load. When the source and load impedances are matched, maximum power is transferred. For example, in a simple resistive circuit, the maximum power is achieved when the load resistance equals the source resistance.
Another critical function of impedance matching is reducing signal reflections. Just as light reflects when moving from air to water, signals can reflect when they encounter changes in impedance along a transmission line. These reflections can cause distortion, especially at high frequencies where the wavelength is comparable to the length of the transmission line. By matching impedances, signal integrity can be significantly improved.
*Figure 2: Load power adjustment*
Now, how do we achieve impedance matching? There are two main approaches: adjusting the load impedance using components like capacitors and inductors, or modifying the transmission line itself. In high-speed PCB design, for instance, trace impedance is often controlled to specific values such as 50 ohms for coaxial cables or 85–100 ohms for differential pairs.
Impedance matching has a wide range of applications. In audio systems, for example, amplifiers and speakers must be properly matched to ensure optimal performance. In PCB design, high-frequency signals require careful impedance control to maintain signal integrity. Antennas also rely on impedance matching to efficiently transmit and receive signals. Additionally, in communication buses like CAN or RS-485, termination resistors are used to prevent signal reflections.

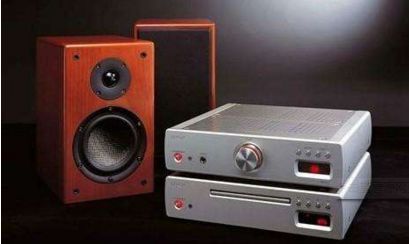

*Figure 5: Speaker*
For high-speed digital systems, factors like trace width, material dielectric constant, and layer stack-up all influence impedance. Proper design ensures that signals remain clean and free from distortion.
Finally, consider the M6G2C-256LI core board from Zhiyuan Electronics. Despite its seemingly simple architecture, it incorporates advanced techniques such as differential routing, equal-length control, and precise impedance matching to ensure stability and reliability. Signal integrity, eye diagrams, and pulse testing all play a role in verifying the performance of high-speed designs.
*Figure 10: M6G2C-256LI industrial grade core board*
In conclusion, impedance matching is a fundamental concept in electronics, essential for maximizing performance, minimizing interference, and ensuring reliable signal transmission across various applications. Whether in audio systems, PCB layouts, or communication networks, understanding and applying impedance matching principles can greatly enhance system efficiency and quality.
